Obliczenia MES

CENTINO oferuje Państwu sprawdzenie projektowanych lub istniejących wyrobów pod względem wytrzymałościowym.

Komputerowe wspomaganie CAE pozwala na przeprowadzenie następujących zagadnień

  • Analiza naprężeń CAE

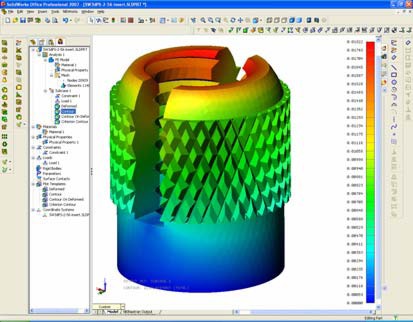

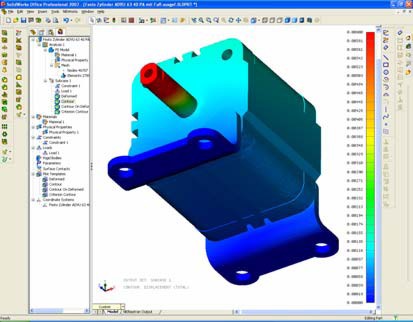

  • Obliczenia MES (FEM)
  • Optymalizacja kształtu wyrobów
  • Optymalizacja masy wyrobów

Nasze obliczenia wspierane są oprogramowaniem opartym na technologii NASTRAN

Material Orientation:

  • Vector projection
  • Curve tangent
  • Rotated curve tangent
  • Translated curve tangent
  • Surface U and V directions

    Properties:

  • 1D beam (PBEAM) and bar (PBAR)
  • 2D plate (PSHELL) and composite (PCOMP)
  • 3D solid (PSOLID)
  • Contact (BSCONP)
Obliczenia MES

Surface Contact:

  • Automatic surface contact generation
  • General, welded, slide, rough, offset weld and RBE3 element contact types
  • Static friction

Analysis Types:

  • Linear statics
  • Normal modes
  • Linear buckling
  • Nonlinear static
  • Thermal stress
  • Prestress static
  • Composite
  • Contact analysis in assemblies
  • Linear steady state heat transfer
  • Optimization
  • Modal transient response
Obliczenia MES

Composite Analysis:

  • Various failure theories supported:
  • Hill
  • Hoffman
  • Tsai-Wu
  • Max. stress
  • Max. strain
  • NASA LARC02

Optimization Analysis:

  • Design objectives to minimize, maximize or reach target values
  • Parametrically update geometry dimensions
  • Optimize weight, stress, material properties, temperature, natural frequency, plate and laminate properties thickness
Obliczenia MES
